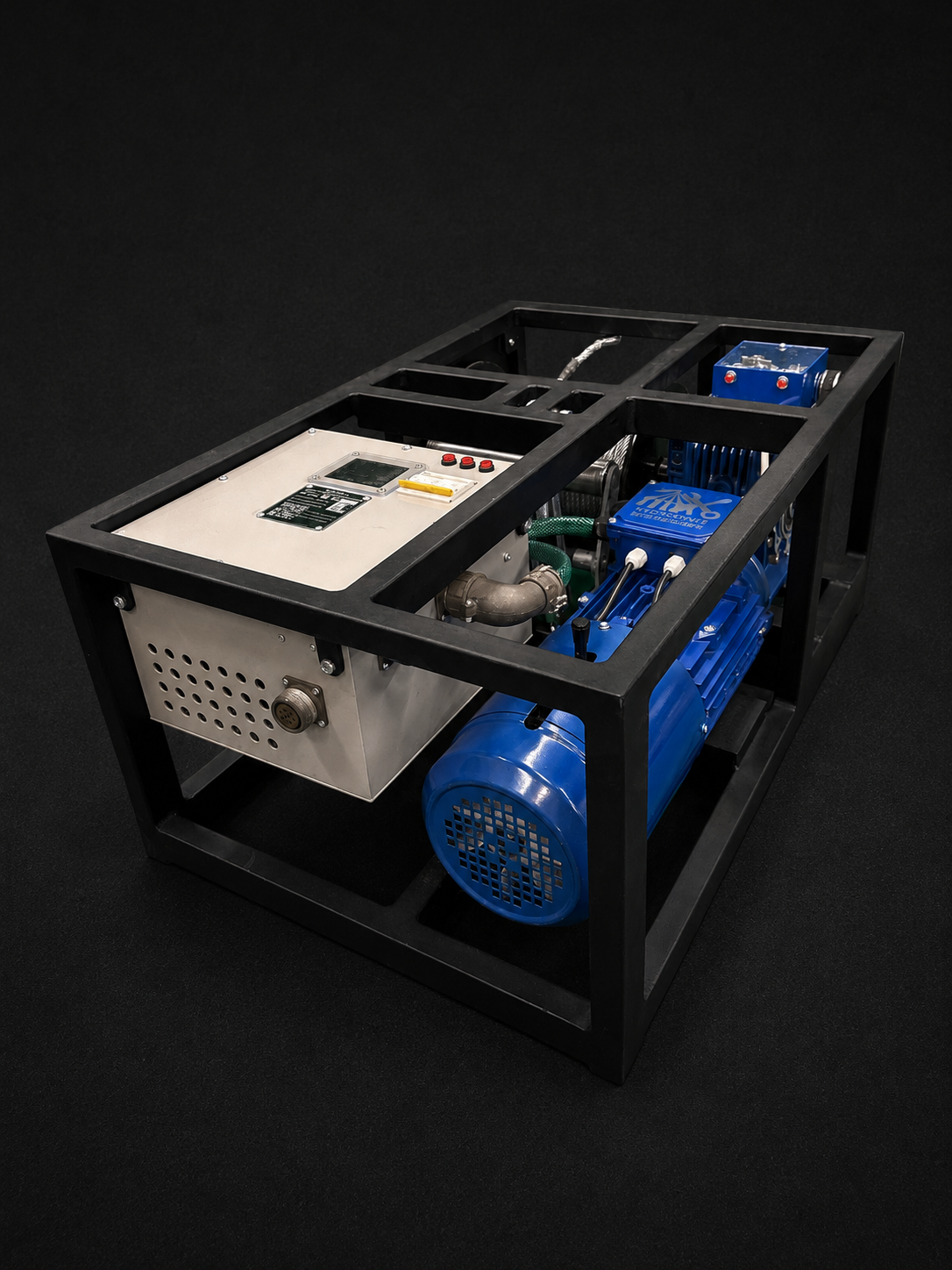

Circus Performer Lifting Winch SWL 380 kg Max Variable Speed 1.5 m/s
Winches

Circus Performer Lifting Winch SWL 380 kg Max Variable Speed 1.5 m/s

SKU 001.06
$10 431
Contact us Back to category
  • Load Capacity: 380 kg | Maximum Lifting Speed: 1.5 m/s
  • Gearmotor: 4.0 kW
  • Frequency Inverter: Toshiba VF-S15-4055
  • Capability for retrofitting with a computer control system
  • Two electric brakes (2 × 30 N·m)
  • Steel cable according to GOST 2688-80, Ø 7.6 mm, breaking load: 4500 kg
  • Two pairs of automatic upper/lower limit switches (operational and emergency)
  • Frame Dimensions: 760 × 560 × 400 mm
  • Turnbuckle for winch anchorage
  • Power Cable: KG 4 × 2.5 type, length 10 m, Euro CE 32A plug (5-pin)
  • Remote manual control pendant, cable length 5 m
  • Packing: plywood case
  • Documentation: Technical data sheet, user manual, and certificate copies
  • Remote technical support
  • Warranty: 1 year (excluding the steel cable)
