Winches

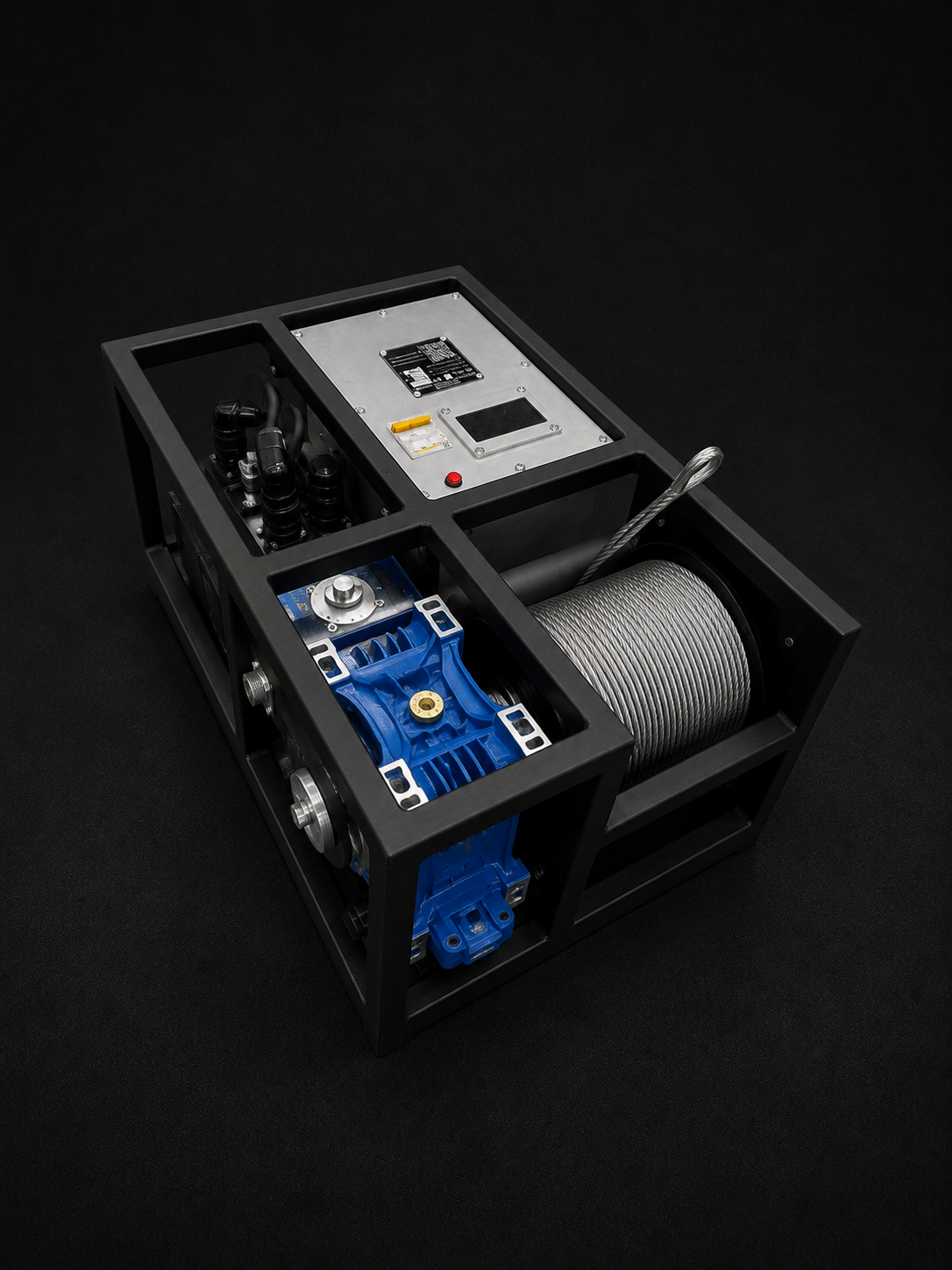

Gastrol-1 Winch, SWL 160 kg, max. speed 0.6 m/s

SKU 001.14

Purchase options

Purchase price
Price on request
  • Load capacity – 160 kg, maximum lifting speed – 0.6 m/s
  • Gearmotor – 1.5 kW
  • Can be retrofitted with a computer control system
  • Electric brake (10 N·m)
  • Steel wire rope in accordance with GOST 2688-80, Ø 5.6 mm, breaking load – 2,100 kg
  • One pair of automatic upper and lower limit switches
  • Frame dimensions – 510 × 335 × 250 mm, weight - 37 kg
  • KG 3 × 1.5 power cable, length – 10 m, Schuko plug
  • Remote manual control pendant, cable length – 5 m
  • Technical data sheet, operating manual, and copies of certificates
  • Remote technical support
  • 1-year warranty (excluding the steel wire rope)
